Airflow Macros and Jinja: Enhancing Machine Learning Workflows

1. Introduction:

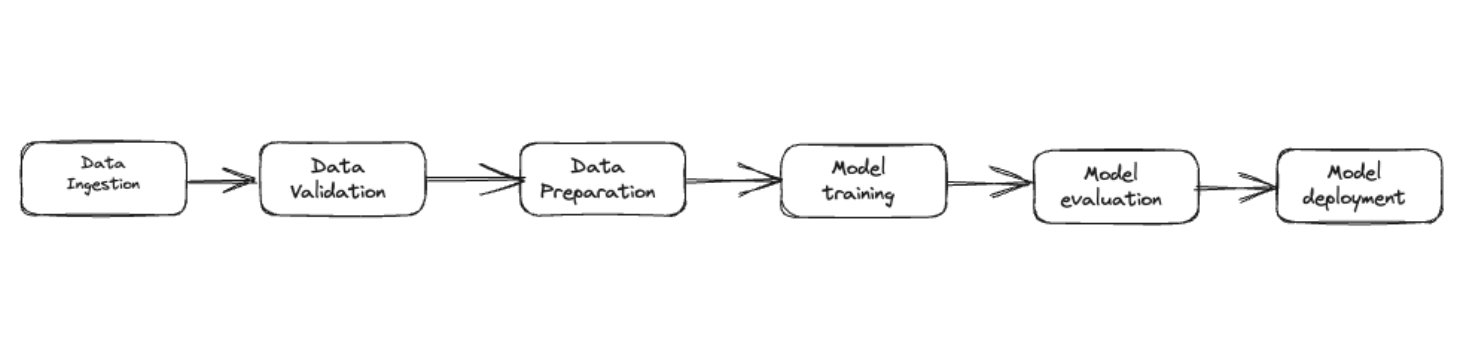

Apache Airflow is a powerful tool for creating and managing data pipelines. In the world of Machine Learning (ML), where data processing and model training often involve complex, multi-step workflows, Airflow shines as a way to organize and automate these processes. For example:

One of the biggest challenges in ML workflows is the need for flexibility:

• Data can change
• Models need updating
• parameters require tuning
• etc.

This is where Airflow's dynamic pipelines come in handy.

👉 They allow us to create workflows that can adapt to changing conditions without needing to rewrite our code constantly.

2. Airflow Macros: The Powerhouse of Dynamic Workflows

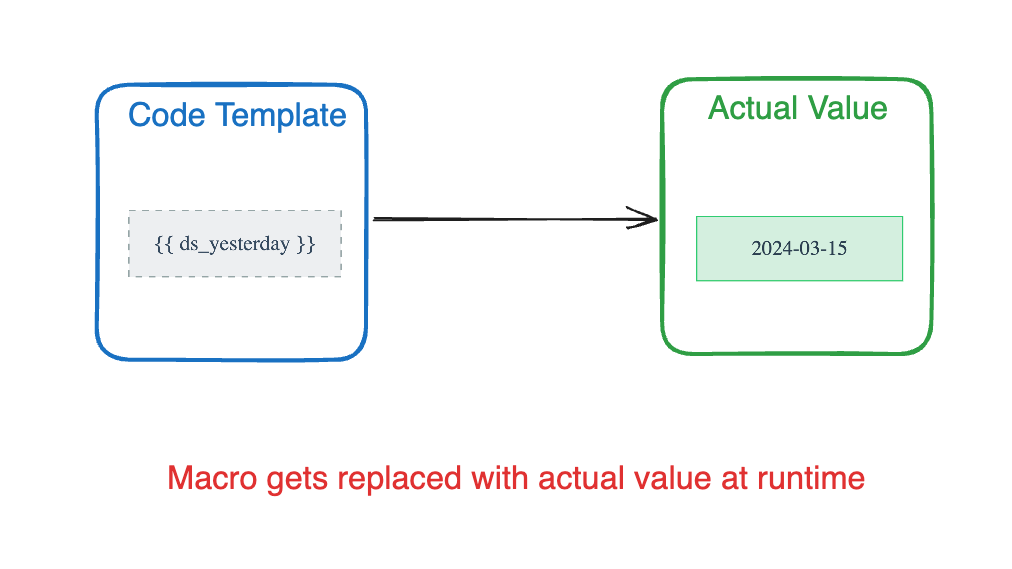

Airflow macros are pre-defined variables or functions that you can use in your Airflow tasks. They act like placeholders that get filled with real values when your task runs.

This means you can write code once that works for different dates, times, or other changing values.

Note:

• Imagine you have a pipeline that needs to process yesterday's data every day. Instead of changing the date manually each time, you can use a macro that automatically gives you yesterday's date. This makes your pipeline dynamic and saves you from potential errors.

Jinja templating: The foundation for macros

Airflow uses a system called Jinja templating to make macros work. Jinja is like a smart find-and-replace tool. It looks for special markers in your code (usually wrapped in double curly braces like this: {{ }}) and replaces them with actual values when the code runs.

3. Essential Airflow Macros for ML Pipelines

Let's look at some of the most useful macros for ML workflows:

Datetime macros for time-based operations

• {{ ds }}: This gives you the date of the current run in the format 'YYYY-MM-DD'. It's super useful for processing data for a specific day.

• {{ yesterday_ds }}: As the name suggests, this gives you yesterday's date. Perfect for when you need to look at recent data.

ds, ds_nodash, ts, and their applications

• {{ ds }}: We mentioned this earlier. It's great for naming files or folders by date. Example: output_{{ ds }}.csv might create a file named output_2023-09-14.csv.

• {{ ds_nodash }}: This is like ds, but without the dashes. Useful when you can't have dashes in names. Example: data_{{ ds_nodash }}.parquet could create data_20230914.parquet.

• {{ ts }}: This gives you the current timestamp. It's handy for very precise timing or creating unique identifiers. Example: model_{{ ts }}.pkl might save a model as model_2023-09-14T10:30:00+00:00.pkl.

params and their use in parametrizing DAGs

The params macro lets you pass custom parameters to your tasks. This is incredibly useful for making your DAGs flexible.

Example:

1default_args = {
2    'owner': 'airflow',
3    'start_date': datetime(2023, 1, 1),
4    'params': {
5        'model_type': 'random_forest',
6        'n_estimators': 100
7    }
8}
9
10with DAG('ml_training_dag', default_args=default_args) as dag:
11    train_model = PythonOperator(
12        task_id='train_model',
13        python_callable=train_model_func,
14        op_kwargs={
15            'model_type': '{{ params.model_type }}',
16            'n_estimators': '{{ params.n_estimators }}'
17        }
18    )

In this example, we can easily change the model type or number of estimators without changing the DAG code itself.

Other useful macros

• {{ macros.ds_add(ds, days) }}: This lets you add or subtract days from a given date. Useful for creating date ranges or looking at specific time periods.

• {{ task_instance }}: This gives you access to the current task instance, which can be helpful for getting runtime information or previous task results.

• {{ dag }}: This provides access to the DAG object, allowing you to get information about the DAG itself.

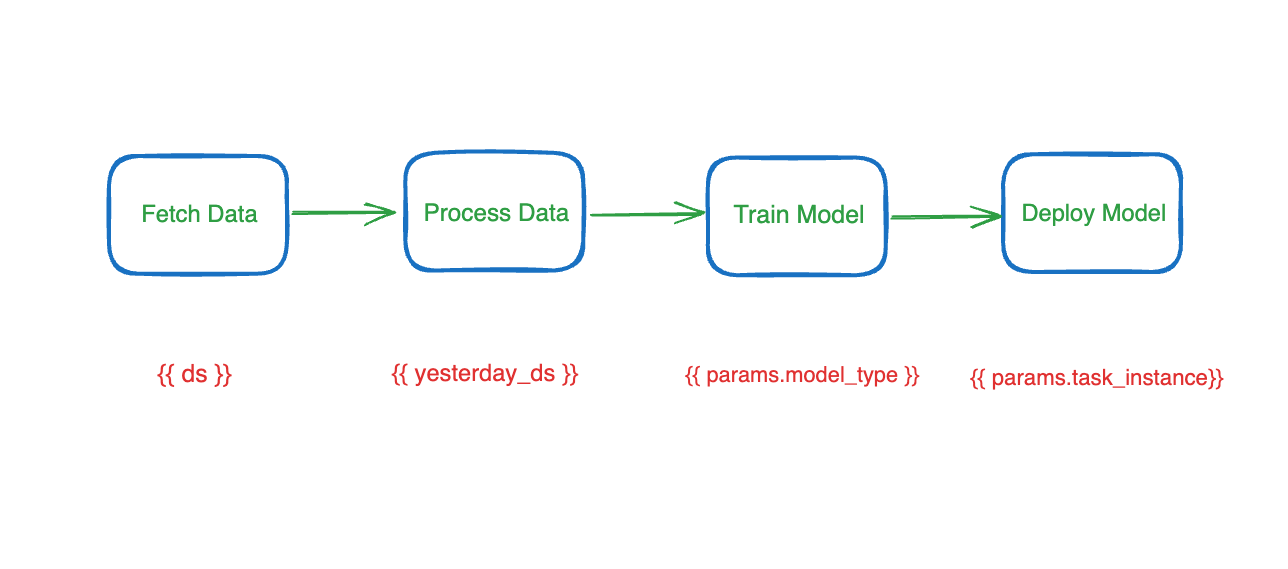

Example ML Workflow with Macros:

In this image:

• The Fetch Data task dynamically pulls the data for the day using the {{ ds }} macro.
• The Process Data task uses {{ yesterday_ds }} to process data from the previous day.
• The Train Model task uses the {{ params.model_type }} and {{ params.task_instance }} macros to train the specified model type with instance-specific parameters.
• The Deploy Model task ensures that the model is deployed based on the model's instance data.

👉 This shows how macros and Jinja templating help in creating flexible and dynamic pipelines that adapt to different conditions without needing constant manual updates.

4. Creating Custom Macros

How to create Custom Macros

You can create your own macros to encapsulate complex logic or frequently used operations. Here's how:

1. Define your macro function in a Python file (e.g., custom_macros.py):

1def days_ago(n):
2    from datetime import datetime, timedelta
3    return (datetime.now() - timedelta(days=n)).strftime('%Y-%m-%d')

2. Add the path to this file in your Airflow configuration (airflow.cfg):

user_defined_macros = /path/to/custom_macros.py

3. Use your custom macro in your DAG:

1task = BashOperator(
2    task_id='print_date',
3    bash_command='echo "Date from 7 days ago: {{ days_ago(7) }}"',
4    dag=dag
5)

Custom Macros for ML-specific Operations

Let's create a macro for data normalization:

1def normalize_column(column_name, min_val, max_val):
2    return f"""
3    ({column_name} - {min_val}) / ({max_val} - {min_val}) AS normalized_{column_name}
4    """
5
6# In your DAG:
7normalize_task = BigQueryOperator(
8    task_id='normalize_data',
9    sql=f"""
10    SELECT
11        {{ normalize_column('feature1', 0, 100) }},
12        {{ normalize_column('feature2', -50, 50) }}
13    FROM `my_dataset.my_table`
14    """,
15    use_legacy_sql=False,
16    dag=dag
17)

This macro helps standardize the process of normalizing columns in your dataset.

5. Airflow Macros in Machine Learning Workflows

Use Case: Automated Hyperparameter Tuning

We can use macros to dynamically set hyperparameters:

1def set_learning_rate(base_rate, decay_factor):
2    return f"""
3    {base_rate} * pow({decay_factor}, {{{{ task_instance.try_number - 1 }}}})
4    """
5
6train_model_task = PythonOperator(
7    task_id='train_model',
8    python_callable=train_model_func,
9    op_kwargs={
10        'learning_rate': "{{ set_learning_rate(0.1, 0.9) }}"
11    },
12    dag=dag
13)

This macro adjusts the learning rate based on the number of task attempts, implementing a simple learning rate decay.

6. Advanced Techniques: Combining Macros with Airflow Operators

PythonOperator with macros

1def process_data(date, feature_count):
2    # Your data processing logic here
3    pass
4
5process_task = PythonOperator(
6    task_id='process_data',
7    python_callable=process_data,
8    op_kwargs={
9        'date': '{{ ds }}',
10        'feature_count': '{{ task_instance.xcom_pull(task_ids="count_features") }}'
11    },
12    dag=dag
13)

This example shows how to use macros to pass dynamic values to a Python function.

BranchPythonOperator with macros

1def choose_model(ti):
2    data_size = ti.xcom_pull(task_ids='check_data_size')
3    if data_size > 1000000:
4        return 'train_large_model'
5    else:
6        return 'train_small_model'
7
8branch_task = BranchPythonOperator(
9    task_id='choose_model',
10    python_callable=choose_model,
11    dag=dag
12)
13
14train_large_model = PythonOperator(
15    task_id='train_large_model',
16    python_callable=train_large_model_func,
17    op_kwargs={'date': '{{ ds }}'},
18    dag=dag
19)
20
21train_small_model = PythonOperator(
22    task_id='train_small_model',
23    python_callable=train_small_model_func,
24    op_kwargs={'date': '{{ ds }}'},
25    dag=dag
26)
27
28branch_task >> [train_large_model, train_small_model]

This example uses a BranchPythonOperator to dynamically choose which model to train based on the data size.

7. Best Practices and Conclusion

Tips for effective use of macros in ML workflows

1. Keep macros simple and focused on a single task.
2. Use descriptive names for custom macros to enhance readability.
3. Document your macros, especially if they contain complex logic.
4. Test your macros thoroughly to ensure they behave as expected in different scenarios.

Potential pitfalls and how to avoid them

1. Overuse of macros can make DAGs hard to read. Use them judiciously.
2. Be cautious with macros that access external resources, as they may slow down DAG parsing.
3. Remember that macros are evaluated at runtime, not during DAG parsing. This can lead to unexpected behavior if not considered.
